Burp

Burp is a set of tools from Portswigger. It comes pre-installed in REMnux. It is very popular among people who deal with web app security. For this lab, I am using Burp as a proxy. Although my INetSim is capable of handling requests now, I’ll still need to use Burp to be able to analyze the SSL traffic.

Burp supports generating on-the-fly SSL certificates. It also creates a single root CA certificate, which I’ll be importing later to our FlareVM machine. When the victim machine initiates a SSL connection, it will first go to Burp on port 443, and then Burp will proxy it to INetSim on port 8443 (HTTPS configured on INetSim’s config file). This setup will allow us to intercept encrypted communications sent from malwares.

Configure Burp

Since port 443 is a privileged port, burp needs to be run with sudo. Let’s launch the Burp Suite Community Edition that is already installed on our REMnux machine.

remnux@remnux:~$ sudo burpsuite

Creating a temporary project with Burp default configuration. Under the Proxy tab opening Proxy settings. Burp’s default listener listens on localhost port 8080. I need to change that.

Select the listener and Open Edit
On the Binding tab set Bind to Port option to 443
Set Bind to address to all interfaces
On the Request Handling tab set Redirect to host to localhost
Set Redirect to port to 8443
Select the checkbox Support invisible proxying

Set up Burp proxy for port 443

Under the Intercept tab if Intercept is on, Burp will intercept every HTTPS requests and will wait for us to explicitly let them pass through. As I don’t want that I am making sure that it shows Intercept off.

Save project options

Burp Free version I’m using doesn’t allow to save project. However, I can export the settings of the current temporary project.

To do this:

From the User Interface > Project
Project settings > Save project settings

I am saving the file on my analysis folder as burp-config-https-proxy. Next time I use Burp, I can import the /analysis/burp-config-https-proxy.json settings and get started.

Test the proxy

Let’s start INetSim again.

remnux@remnux:~/analysis/test-analysis$ sudo inetsim --data data --conf inetsim.conf

To test if the proxy is working, I am going to send a curl https request to localhost.

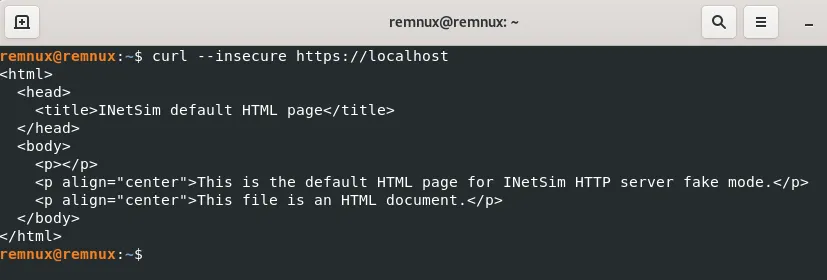

Curl https call

Since I’m getting the INetSim default HTML page as the response, the proxy is working correctly.

Import Burp’s CA certificate

Although the Burp proxy is working now, if I try to make an https request from my FlareVM machine, it gives me a certificate warning. This happens because Burp generates SSL certificates that are signed by its own CA certificate, but our FlareVM machine does not trust Burp’s CA as of now.

I need to manually add Burp’s CA certificate to FlareVM’s Trusted Root Certification Authorities.

To do this, in REMnux:

In Burp Proxy > Proxy settings
Add new proxy listener
Bind to port 8080
Bind to all interfaces

In FlareVM:

Browse to http://10.0.0.3:8080
Click on CA Certificate to download the cacert.der file
Right click the downloaded file and Install Certificate
Store location > Local Machine > Next
Follow on-screen instructions and Finish

After the certificate import is successful, I am taking a new snapshot of this state. This will be my clean OS state with Burp’s CA installed. Also taking a snapshot of the REMnux machine at present state to launch at ready state when I want.

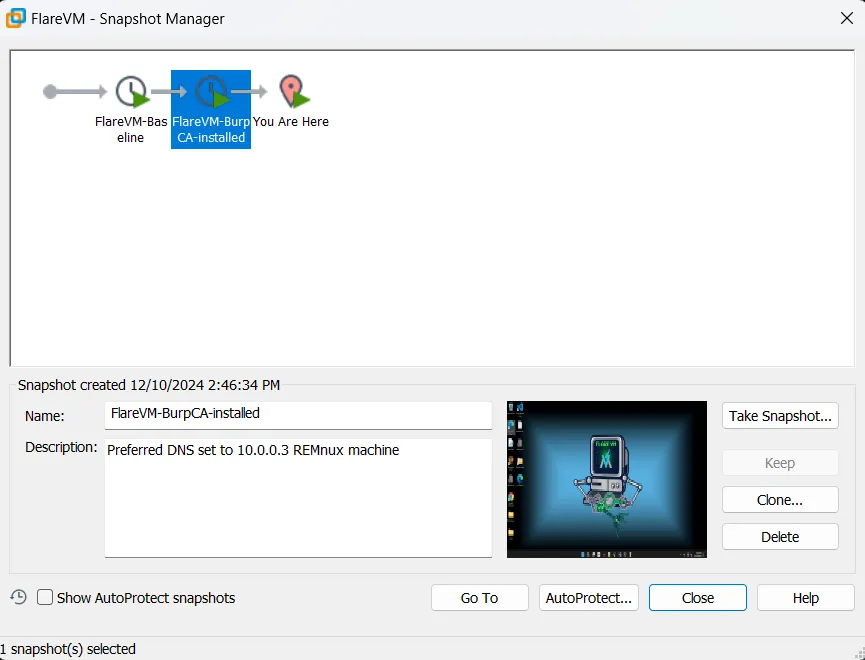

FlareVM snapshot

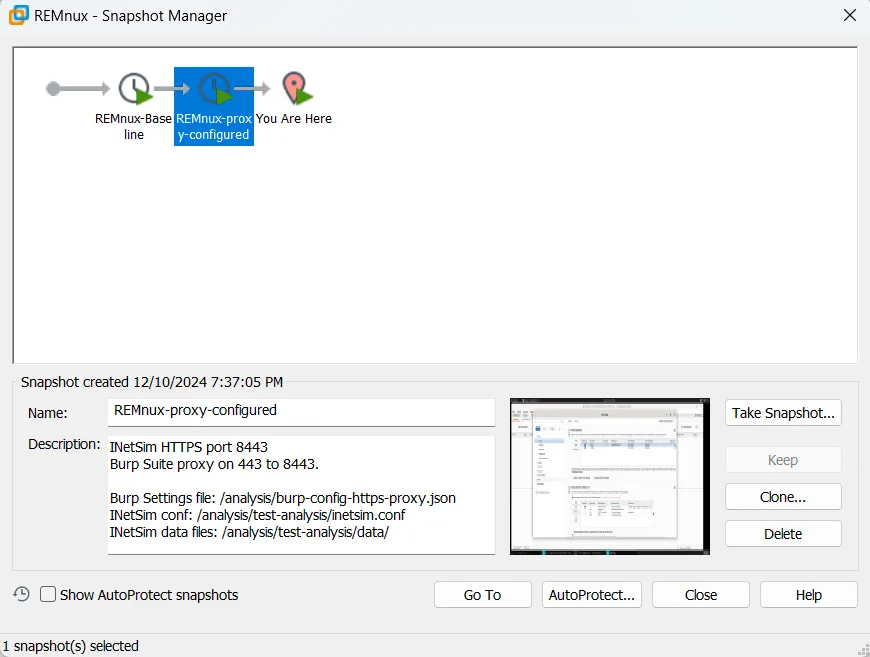

REMnux snapshot
