Ubuntu Server 24.04

Objective:

• Setup SSH Server and view authentication logs
• Install Elastic Agent onto the server

Machine Configuration

I have set up my server with the following configuration:

Configuration	Value
Instance Name	ubuntu-server
Region	asia-east1
Zone	asia-east1-a
Machine Type	e2-medium (2 vCPUs, 4 GB RAM)
Operating System	Ubuntu 24.04 LTS
Storage	30 GB SSD persistent disk
Network Interface	vpc-test-machines
Subnet	vpc-test-machines-internal, range 192.168.0.0/24
Custom IP Address	192.168.0.3
External IP	Ephemeral
Firewall Rules	As configured for the network
Network Tags	None

Access the machine

To be able to SSH into the ubuntu-server instance, we’ll need to add our public SSH key created before in our ubuntu-server VM instance. Now we should be able to get SSH access.

After we are in the machine:

sudo -i
apt-get update && apt-get upgrade -y

/var/log/auth.log

Let’s head over to the /var/log directory.

root@ubuntu-server:~# cd /var/log
root@ubuntu-server:/var/log# ls
README            btmp                   dmesg      lastlog              wtmp
alternatives.log  chrony                 dpkg.log   private
apport.log        cloud-init-output.log  journal    syslog
apt               cloud-init.log         kern.log   sysstat
auth.log          dist-upgrade           landscape  unattended-upgrades

auth.log contains all of the authentication related activities. We can observe and investigate the entries in this log file from the terminal and might find some interesting login attempts.

root@ubuntu-server:/var/log# grep -i sshd auth.log | grep -i root
2024-10-03T05:49:16.477434+00:00 ubuntu-server sshd[923]: Disconnected from authenticating user root 189.127.173.52 port 41534 [preauth]
2024-10-03T05:50:46.877008+00:00 ubuntu-server sshd[1202]: Disconnected from authenticating user root 189.127.173.52 port 45180 [preauth]
2024-10-03T05:51:35.809710+00:00 ubuntu-server sshd[1204]: Disconnected from authenticating user root 189.127.173.52 port 54790 [preauth]
2024-10-03T05:52:23.717803+00:00 ubuntu-server sshd[1206]: Disconnected from authenticating user root 189.127.173.52 port 50986 [preauth]
2024-10-03T05:53:11.084764+00:00 ubuntu-server sshd[1208]: Disconnected from authenticating user root 189.127.173.52 port 50836 [preauth]
2024-10-03T05:53:57.284983+00:00 ubuntu-server sshd[1211]: Disconnected from authenticating user root 189.127.173.52 port 35130 [preauth]
2024-10-03T05:54:44.848696+00:00 ubuntu-server sshd[1215]: Disconnected from authenticating user root 189.127.173.52 port 40842 [preauth]
2024-10-03T05:55:30.066801+00:00 ubuntu-server sshd[1226]: Disconnected from authenticating user root 189.127.173.52 port 39844 [preauth]
2024-10-03T05:56:16.381754+00:00 ubuntu-server sshd[1228]: Disconnected from authenticating user root 189.127.173.52 port 40012 [preauth]
2024-10-03T05:57:00.940092+00:00 ubuntu-server sshd[1702]: Disconnected from authenticating user root 189.127.173.52 port 54278 [preauth]
root@ubuntu-server:/var/log# grep -i sshd auth.log | grep -i root | cut -d ' ' -f 1,9,11
2024-10-03T05:49:16.477434+00:00 189.127.173.52 41534
2024-10-03T05:50:46.877008+00:00 189.127.173.52 45180
2024-10-03T05:51:35.809710+00:00 189.127.173.52 54790
2024-10-03T05:52:23.717803+00:00 189.127.173.52 50986
2024-10-03T05:53:11.084764+00:00 189.127.173.52 50836
2024-10-03T05:53:57.284983+00:00 189.127.173.52 35130
2024-10-03T05:54:44.848696+00:00 189.127.173.52 40842
2024-10-03T05:55:30.066801+00:00 189.127.173.52 39844
2024-10-03T05:56:16.381754+00:00 189.127.173.52 40012
2024-10-03T05:57:00.940092+00:00 189.127.173.52 54278

I have found service scanning and probing activity by the IP 189.127.173.52. This is typical for an internet-facing connection. This is most probably a service scanner that has found out that my server is responding to port 22 and is repeatedly trying to authenticate with weak passwords to breach the server.

To ease my efforts, rather than searching through our logs on the server directly, I am going to install an elastic agent on this server, so that we can forward our logs to our already set up elasticsearch instance and query from there.

Install Elastic Agent

Let’s go to http://<elk-server-public-ip>:5601 and login to elastic.

Left-corner hamburger menu > Under Management > Fleet > Agent policies tab > Create agent policy

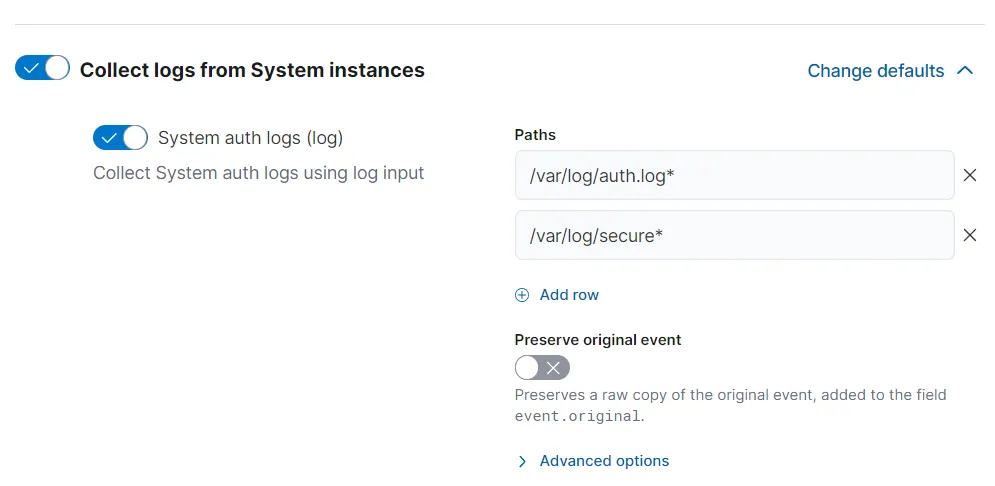

I have named my policy Agent-Ubuntu-Server. If we go into the policy and select the default integration, we can see that the policy is set to collect system auth logs from /var/log/auth.log already.

Let’s head over to

The Agents tab > Add agent

We need to select Agent-Ubuntu-Server policy. Let’s copy the Linux Tar command for agent installation.

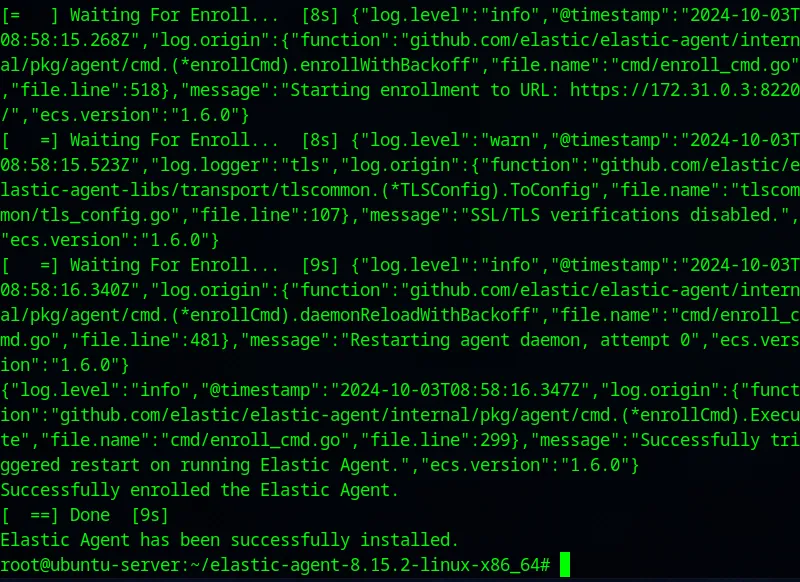

curl -L -O https://artifacts.elastic.co/downloads/beats/elastic-agent/elastic-agent-8.15.2-linux-x86_64.tar.gz tar xzvf elastic-agent-8.15.2-linux-x86_64.tar.gz cd elastic-agent-8.15.2-linux-x86_64 sudo ./elastic-agent install --url=https://172.31.0.3:8220 --enrollment-token=cmI0c1VaSUJKYlluUkF5aE90UF86R0cwbnQtNW1TNmF4TWV4ZE1NY0NDUQ== --insecure

I have added the --insecure flag at the end to avoid singed certificate error since we have done a self-signed certificate.

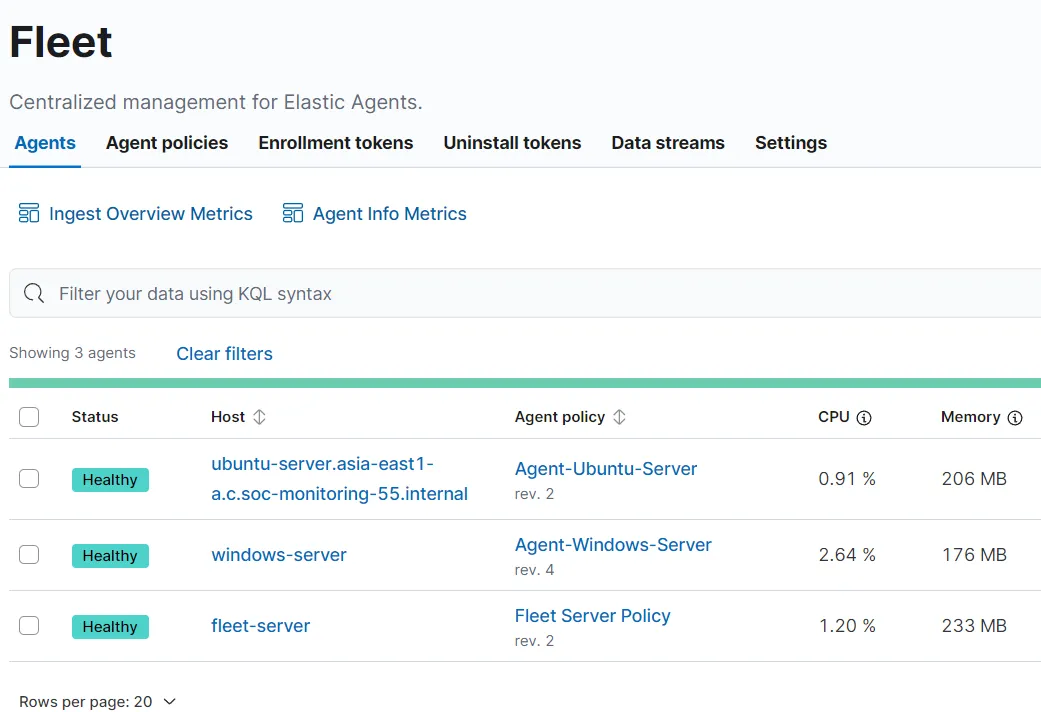

On the fleet page it is showing that Agent is running.

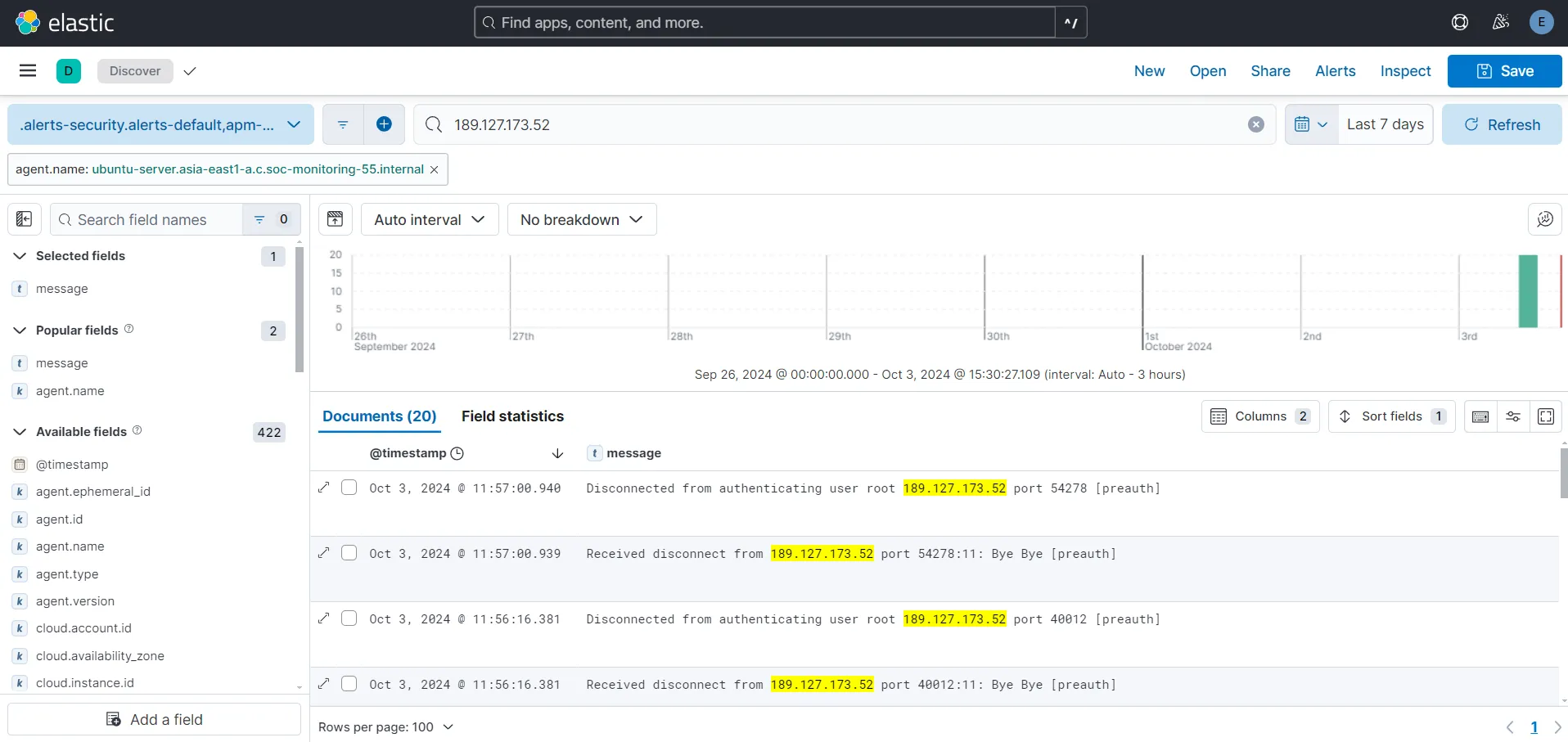

From the Discover tab, let’s add our newly added agent from field agent.name and let’s search for our previously found IP 189.127.173.52 which was trying to breach our server.

Here, I am able to find all the relevant logs that I had found earlier directly on our system’s auth.log.
